Mazda 3 Owners Manual: Armrest

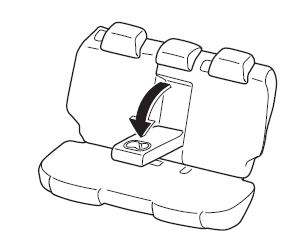

The rear armrest in the center of the rear seatback can be used (no occupant in the center seat) or placed upright.
| WARNING Never put your hands and fi ngers around the moving parts of the seat and armrest: Putting your hands and fi ngers around the moving parts of the seat and armrest is dangerous as they could get injured. |
