Mazda 3 Service Manual: Steering Switch Removal/Installation
WARNING:
-
Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module..
1. Disconnect the negative battery cable and wait for 1 min or more
..
2. Remove the driver-side air bag module..
3. Remove the steering wheel..
4. Remove the screw.
5. Remove the wiring harness from the cover hook.
6. Remove the cover tabs and pins from the steering wheel.

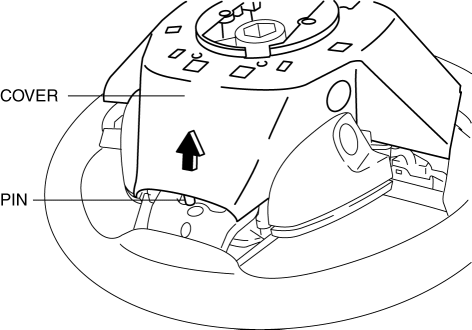

7. Remove the cover.
8. Disconnect the connector.
9. Remove the screw.
10. Remove the steering switch pins from the steering wheel.
11. Remove the steering switch.
12. Install in the reverse order of removal.
Steering Switch Inspection
Without Bluetooth System
WARNING:
Handling the air bag module improperly can accidentally deploy the air bag
module, which may seriously injure you. Read the air bag system service warning ...
